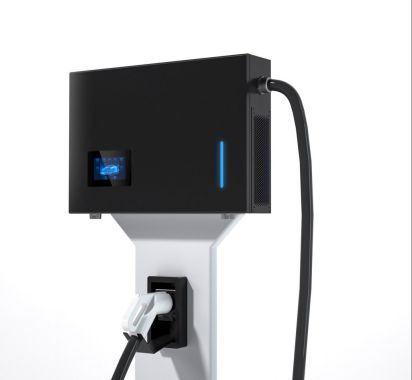

40 kW wall-mounted charger – DC charger

Compact mobile 30 kW DC charger for indoor use. This product is suitable for the temporary charging of all EVs and electric machines using the CCS standard.

The YESGREEN 40 kW (62A) small form factor wall charger makes charging all CCS2 vehicles easy at any garage or parking area.

Small form factor and wall/stand mounting options enable flexible installation and charger positioning. High voltage range up to 1000 VDC allows charging of all electric vehicles. Default charging cable is 7 meter long CCS2 cable.

Technical Specification

Power rating                          40 kW, 48A DC

EV connector                         CCS, 5 or 7 meter cable

Output voltage                      200~1000 VDC

Input voltage                         400 VAC

Maximum input current        62 A

Size (w,d,h)                            800 * 170 * 550 mm

Weight                                  40 kg

Case safety ratings                IP54

Operating temperature        -20°C to +50°C

Mounting options                 Wall or stand mount

Product variants

YESGREEN 40 kW DC Wall charger CCS2, 5 meter cable

YESGREEN 40 kW DC Wall charger CCS2, 7 meter cable

YESGREEN 40 kW DC charger floor mounting stand
